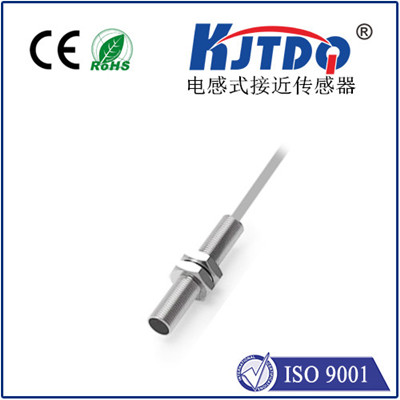

KJT-J8M埋入式接近傳感器
發布時間：2020-01-07 11:14:41瀏覽次數：
| 安裝方式 | 埋入式 |
| 檢測距離 | 1/2/3/mm |

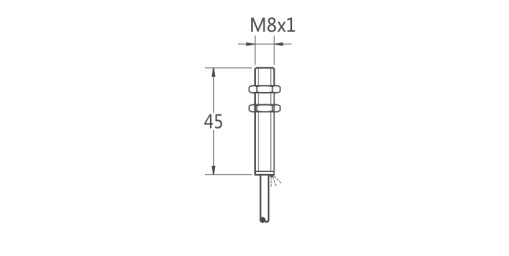

| 外形規格 | M8*45 |

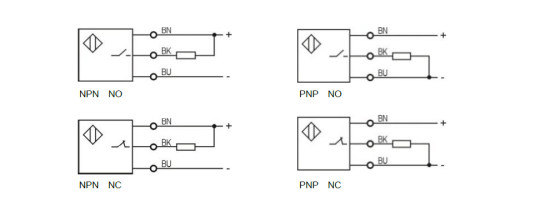

| 輸出方式 | NPN/PNP NO/NC |
| 電源電壓 | 10…30VDC |
| 開關頻率 | 2KHz/1KHZ |
| 開關點偏移 | ≤±10% |
| 遲滯范圍 | 1…20% |
| 重復誤差 | ≤3% |
| 負荷電流 | ≤100mA |
| 殘留電壓 | ≤2.5V |
| 消耗電流 | ≤10mA |
| 保護回路 | 浪涌,逆極性保護 |
| 輸出指示 | 紅色LED |
| 環境溫度 | -25…70℃ |
| 環境濕度 | 35-95% |
| 防護等級 | IP67 |
| 外殼材料 | 黃銅鍍鉻 |
| 接線方式 | 2米PUR電纜 |
| Sn 1mm DC 3 wire 10-30 PNP NO | KJT-KJ108-D01PA-D3 |
| Sn 1mm DC 3 wire 10-30 PNP NC | KJT-KJ108-D01PB-D3 |
| Sn 1mm DC 3 wire 10-30 NPN NO | KJT-KJ108-D01NA-D3 |
| Sn 1mm DC 3 wire 10-30 NPN NC | KJT-KJ108-D01NB-D3 |
| Sn 2mm DC 3 wire 10-30 PNP NO | KJT-KJ108-D02PA-D3 |
| Sn 2mm DC 3 wire 10-30 PNP NC | KJT-KJ108-D02PB-D3 |
| Sn 2mm DC 3 wire 10-30 NPN NO | KJT-KJ108-D02NA-D3 |
| Sn 2mm DC 3 wire 10-30 NPN NC | KJT-KJ108-D02NB-D3 |
| Sn 3mm DC 3 wire 10-30 PNP NO | KJT-KJ108-D02PA-D3 |
| Sn 3mm DC 3 wire 10-30 PNP NC | KJT-KJ108-D03PB-D3 |
| Sn 3mm DC 3 wire 10-30 NPN NO | KJT-KJ108-D03NA-D3 |
| Sn 3mm DC 3 wire 10-30 NPN NC | KJT-KJ108-D03NB-D3 |
| Sn 1 mm DC 2 wire 10-36V NO | KJT-KJ108-D01DA-D3 |
| Sn 1 mm DC 2 wire 10-36V NC | KJT-KJ108-D01DB-D3 |
| Sn 1 mm AC 2 wire 90-250V NO | KJT-KJ108-D01AA-D3 |
| Sn 1 mm AC 2 wire 90-250V NC | KJT-KJ108-D01AB-D3 |
