KJT-J30M埋入式接近傳感器
發布時間：2020-01-08 16:25:53瀏覽次數：
| 安裝方式 | 埋入式 |
| 檢測距離 | 10/16/22/mm |

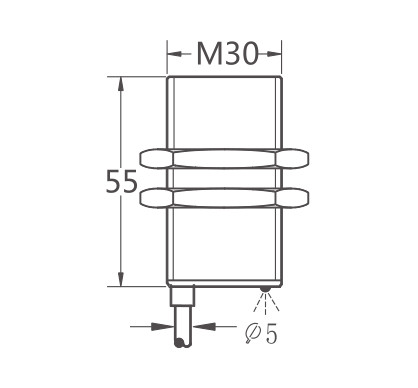

| 外形規格 | M30*55 |
| 輸出方式 | NPN/PNP NO/NC |
| 電源電壓 | 10…30VDC |
| 開關頻率 | 2KHz/1KHZ |
| 開關點偏移 | ≤±10% |
| 遲滯范圍 | 1…20% |
| 重復誤差 | ≤3% |
| 負荷電流 | ≤100mA |
| 殘留電壓 | ≤2.5V |
| 消耗電流 | ≤10mA |
| 保護回路 | 浪涌,逆極性保護 |
| 輸出指示 | 紅色LED |
| 環境溫度 | -25…70℃ |
| 環境濕度 | 35-95% |
| 防護等級 | IP67 |
| 外殼材料 | 鍍鎳黃銅 |
| 接線方式 | 2米PUR電纜 |
| Sn 10mm DC 3 wire 10-30 PNP NO | KJT-KJ130-D10PA-D3 |
| Sn 10mm DC 3 wire 10-30 PNP NC | KJT-KJ130-D10PB-D3 |
| Sn 10mm DC 3 wire 10-30 NPN NO | KJT-KJ130-D10NA-D3 |
| Sn 10mm DC 3 wire 10-30 NPN NC | KJT-KJ130-D10NB-D3 |
| Sn 16mm DC 3 wire 10-30 PNP NO | KJT-KJ130-D16PA-D3 |
| Sn 16mm DC 3 wire 10-30 PNP NC | KJT-KJ130-D16PB-D3 |
| Sn 16mm DC 3 wire 10-30 NPN NO | KJT-KJ130-D16NA-D3 |
| Sn 16mm DC 3 wire 10-30 NPN NC | KJT-KJ130-D16NB-D3 |
| Sn 22mm DC 3 wire 10-30 PNP NO | KJT-KJ130-D22PA-D3 |
| Sn 22mm DC 3 wire 10-30 PNP NC | KJT-KJ130-D22PB-D3 |
| Sn 22mm DC 3 wire 10-30 NPN NO | KJT-KJ130-D22NA-D3 |
| Sn 22mm DC 3 wire 10-30 NPN NC | KJT-KJ130-D22NB-D3 |
| Sn 10 mm DC 2 wire 10-36V NO | KJT-KJ130-D10DA-D3 |
| Sn 10 mm DC 2 wire 10-36V NC | KJT-KJ130-D10DB-D3 |
| Sn 10 mm AC 2 wire 90-250V NO | KJT-KJ130-D10AA-D3 |
| Sn 10 mm AC 2 wire 90-250V NC | KJT-KJ130-D10AB-D3 |
