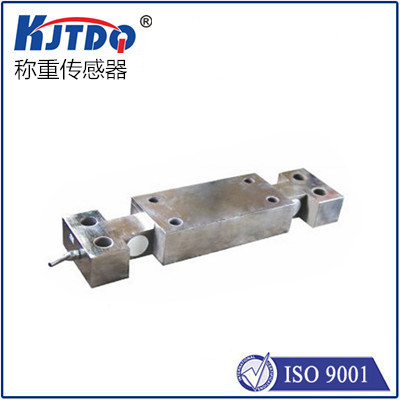

軸承座式荷重傳感器KJT-ZCZ
發布時間：2020-03-11 10:33:05瀏覽次數：

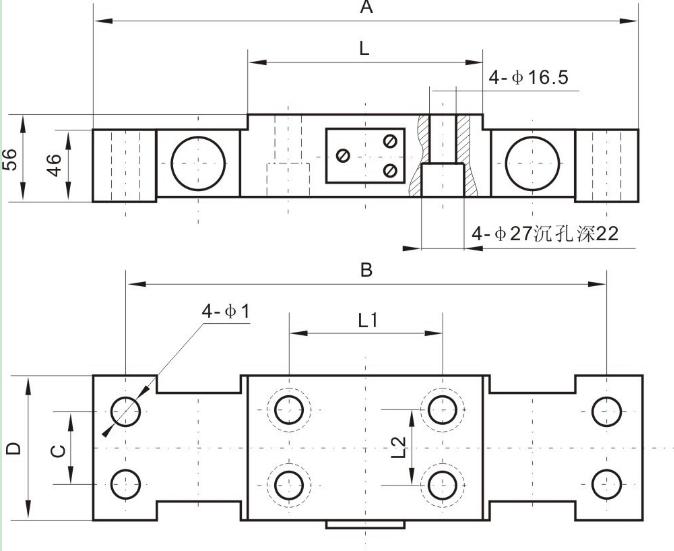

| 規格/代號 | 1.5t | 2.5t | 4t-10t |
| A | 350 | 410 | 410 |
| B | 310 | 355 | 355 |
| C | 38 | 50 | 50 |
| D | 75 | 10 | 100 |
| L | 152 | 182 | 212 |
| L1 | 100 | 130 | 160 |
| L2 | 40 | 60 | 60 |
| ф1 | ф17 | ф21 | ф21 |
| 額定載荷 Rated Load | 0～10(t) |
| 綜合精度 Comprehensive Precision | 0.05 (線性+滯后+重復性) |
| 靈敏度 Sensitivity | 2.0 mV/V |
| 蠕變 Creep | ±0.05%F·S/30min |
| 零點輸出 Zero Output | ±1 %F·S |
| 零點溫度影響 Temperature Effect On Zero | ±0.05 %F·S/10℃ |
| 輸出溫度影響 Temperature Effect On Output | ±0.05%F·S/10℃ |
| 工作溫度 Operating Temperature Range | -20℃～+65℃ |
| 輸入阻抗 Input Resistance | 750±15Ω |
| 輸出阻抗 Output Resistance | 700±5Ω |
| 絕緣電阻 Insulation Resistance | >5000 MΩ |
| 正常過載 Safe Load Limit | 150% F·S |
| 供橋電壓 Bridge Voltage | 建議 10VDC |
| 材質 Material |
合金鋼或不銹鋼 Alloy Steel or Stainless Steel |
|
傳感器接線方式
Load Cell Mode of Connection |
輸入+:紅 Input+:Red
輸入-:黑 Input-:Black 輸出+:綠 Output+:Green
輸出-:白 Output-:White |
